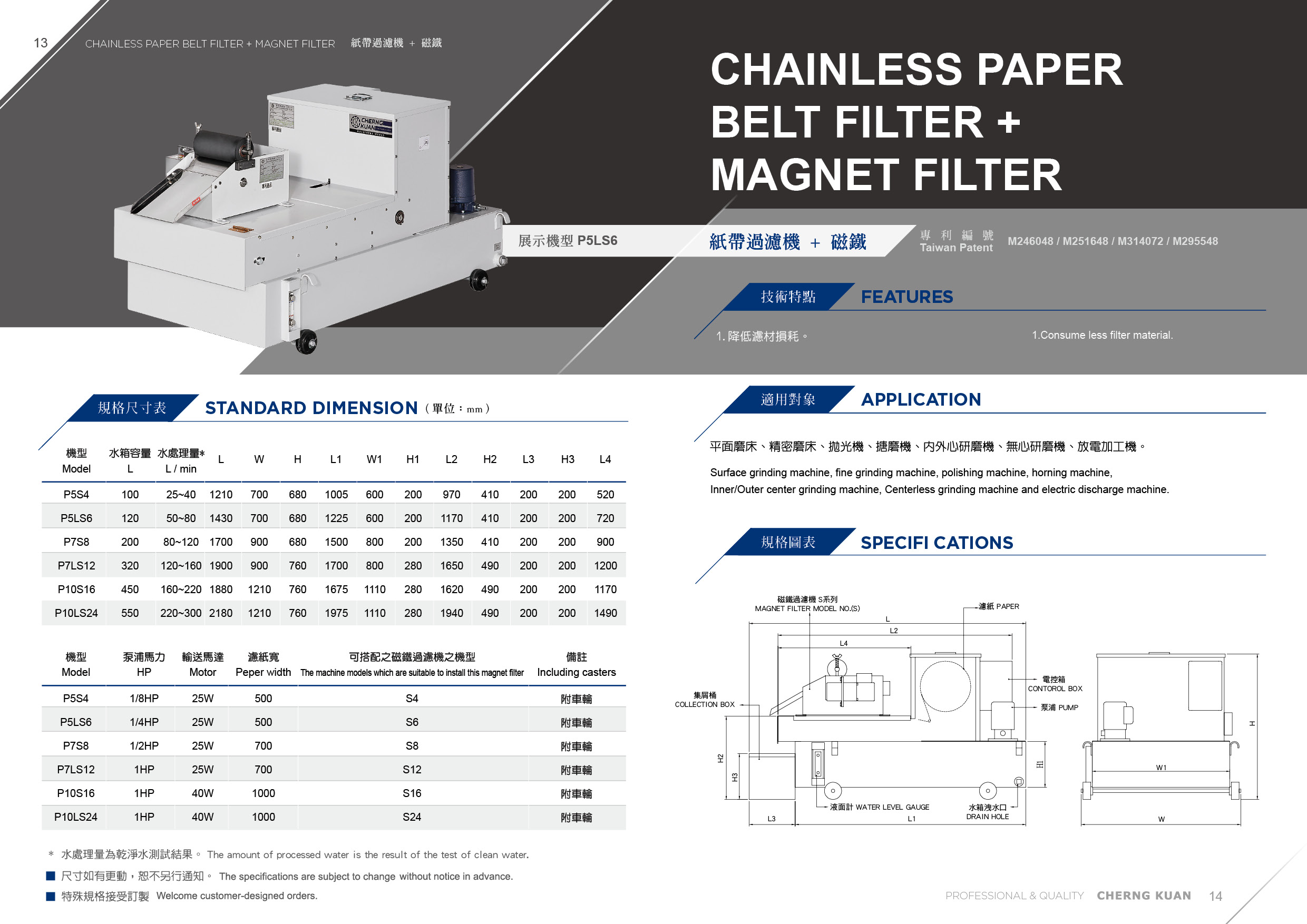

Chainless paper belt filter + magnet filter

FEATURES
Consume less filter material.

Model : P5LS6

Attach：

Q'ty :

Description
Specifications

Taiwan patent no.

M246048/M251648/M314072/M295548

FEATURES

Consume less filter material.

APPLICATION

Surface grinding machine, fine grinding machine, polishing machine,horning machine, Inner/Outer center grinding machine,Centerless grinding machine and electric discharge machine.

標準尺寸表

Model	L	L/Min*	L	W	H	L1	W1	H1	L2	H2	L3	H3	L4
P5S4	100	25~40	L	W	H	L1	W1	H1	L2	H2	L3	H3	L4	1210	700	680	1005	600	200	970	410	200	200	520
P5LS6	120	50~80	1430	700	680	1225	600	200	1170	410	200	200	720
P7S8	200	80~120	1700	900	680	1500	800	200	1350	410	200	200	900
P7LS12	320	120~160	1900	900	760	1700	800	280	1650	490	200	200	1200
P10S16	450	160~220	1880	1210	760	1675	1110	280	1620	490	200	200	1170
P10LS24	550	220~300	2180	1210	760	1975	1110	280	1940	490	200	200	1490
Model	HP	Motor	Peper width	The machine models which are suitable to install this magnet filter						Including casters
P5S4	1/8HP	25W	500	S4						附車輪
P5LS6	1/4HP	25W	500	S6						附車輪
P7S8	1/2HP	25W	700	S8						附車輪
P7LS12	1HP	25W	700	S12						附車輪
P10S16	1HP	40W	1000	S16						附車輪
P10LS24	1HP	40W	1000	S24						附車輪

*The amount of processed water is the result of the test of clean water.
※The specifications are subject to change without notice in advance.
※Special specifications can be customized.
