Series single cartridge filter housing - TKA series


Application

To be used in the equipment which employs water soluble cutting fluid.


Standard dimension

  • Material: SUS304.SUS316
  • pressure resistance:10kg/cm
  • O-ring: EPDM
  • Surface treated:electrolyzed

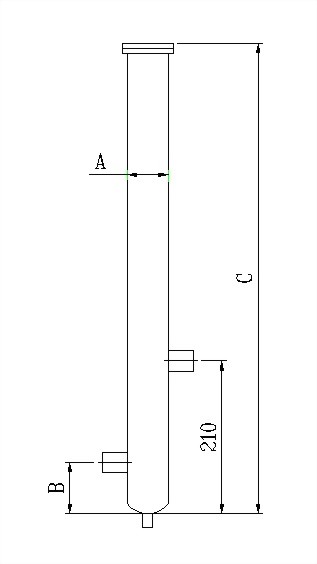

標準尺寸表

Model

A

B

C

D

TKA-10

89

210

110

500

TKA-20

89

210

110

750

TKA-30

89

210

110

1000


※ 尺寸如有更改,恕不另行通知
