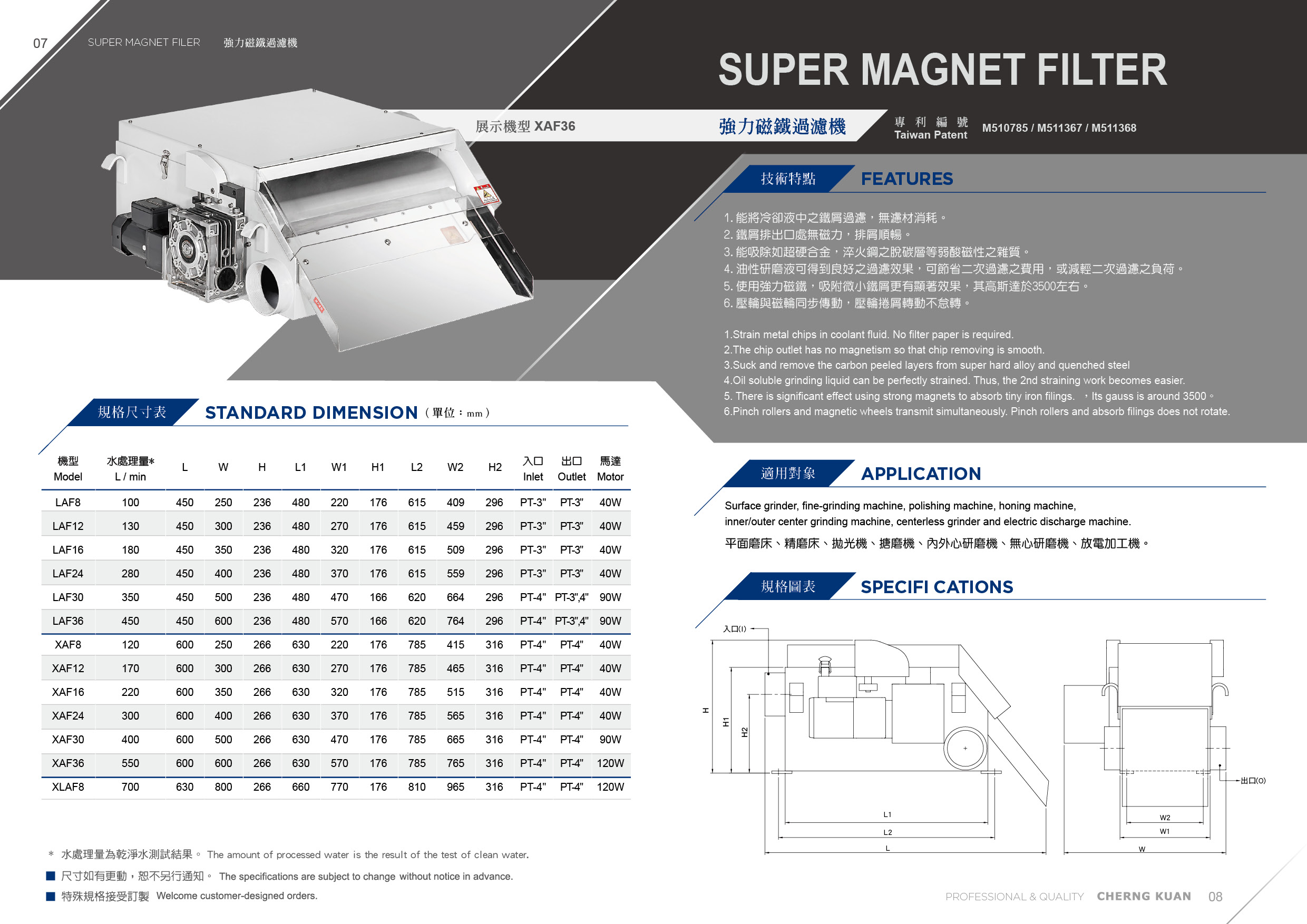

• Super Magnet Filter

Super Magnet Filter


FEATURES
Strain metal chips in coolant fluid. No filter paper is required.
The chip outlet has no magnetism so that chip removing is smooth.
Suck and remove the carbon peeled layers from super hard alloy and quenched steel
Oil soluble grinding liquid can be perfectly strained. Thus, the 2ndstraining work becomes easier.
The use of powerful magnets attracts tiny iron filings more than a significant effect, with a Gaussian of about 3000.
The pressure roller is synchronously driven with the magnetic wheel, and the pressure roller does not idle.
The whole machine is made of SUS304.
Model : XAF36

Taiwan patent no.

M510785/M511367/M511368


FEATURES

  • Strain metal chips in coolant fluid. No filter paper is required.
  • The chip outlet has no magnetism so that chip removing is smooth.
  • Suck and remove the carbon peeled layers from super hard alloy and quenched steel
  •  Oil soluble grinding liquid can be perfectly strained. Thus, the 2ndstraining work becomes easier.
  • The use of powerful magnets attracts tiny iron filings more than a significant effect, with a Gaussian of about 3000.
  • The pressure roller is synchronously driven with the magnetic wheel, and the pressure roller does not idle.
  • The whole machine is made of SUS304.


APPLICATION

Surface grinder, fine-grinding machine, polishing machine, honing machine, inner/outer center grinding machine, centerless grinder and electric discharge machine.

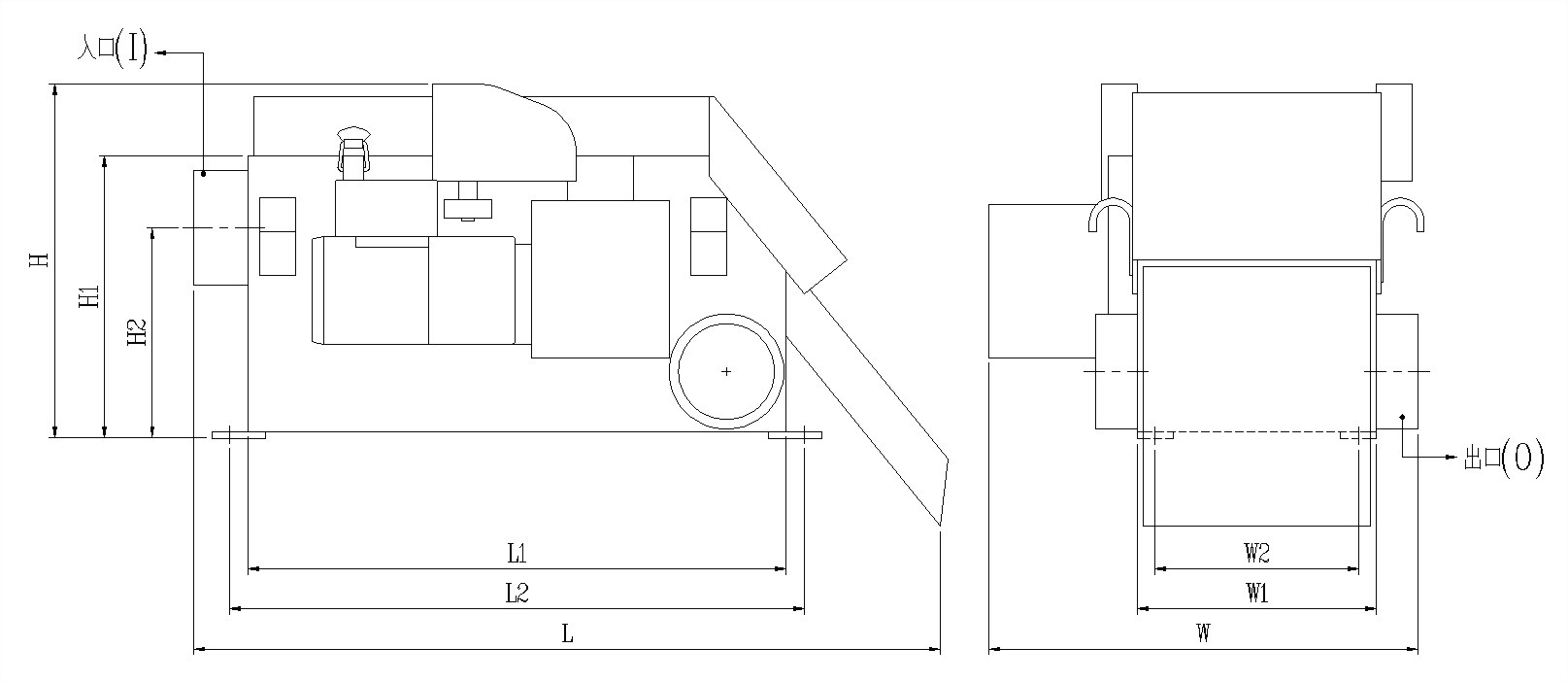

標準尺寸表

Model L/Min* L W H L1 W1 H1 L2 W2 H2 Inlet Outlet Motor
LAF8 100 450 250 236 480 220 176 615 409 296 PT-3" PT-3" 40W
LAF12 130 450 300 236 480 270 176 615 459 296 PT-3" PT-3" 40W
LAF16 180 450 350 236 480 320 176 615 509 296 PT-3" PT-3" 40W
LAF24 280 450 400 236 480 370 176 615 559 296 PT-3" PT-3" 40W
LAF30 350 450 500 236 480 470 166 620 664 296 PT-4" PT-3",4" 90W
LAF36 450 450 600 236 480 570 166 620 764 296 PT-4" PT-3",4" 90W
XAF8 120 600 250 266 630 220 176 785 415 316 PT-4" PT-4" 40W
XAF12 170 600 300 266 630 270 176 785 465 316 PT-4" PT-4" 40W
XAF16 220 600 350 266 630 320 176 785 515 316 PT-4" PT-4" 40W
XAF24 300 600 400 266 630 370 176 785 565 316 PT-4" PT-4" 40W
XAF30 400 600 500 266 630 470 176 785 665 316 PT-4" PT-4" 90W
XAF36 550 600 600 266 630 570 176 785 765 316 PT-4" PT-4" 120W
XLAF8 700 630 800 266 660 770 176 810 965 316 PT-4" PT-4" 120W


*The amount of processed water is the result of the test of clean water.
※The specifications are subject to change without notice in advance.
※Special specifications can be customized.
