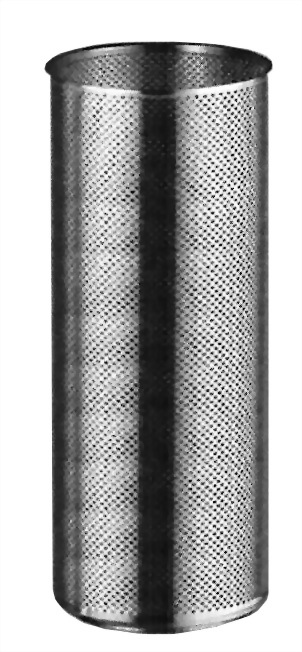

Series high pressure filter bag housing
Attach：
Application
To be used in the equipment which employs water soluble cutting fluid.
Standard dimension
- Material: SUS304.SUS316
- Dia threaded: opening.flange
- pressure resistance:10kg/cm2
- O-ring: EPDM、VITON、PTFE
- Surface treated:electrolyzed

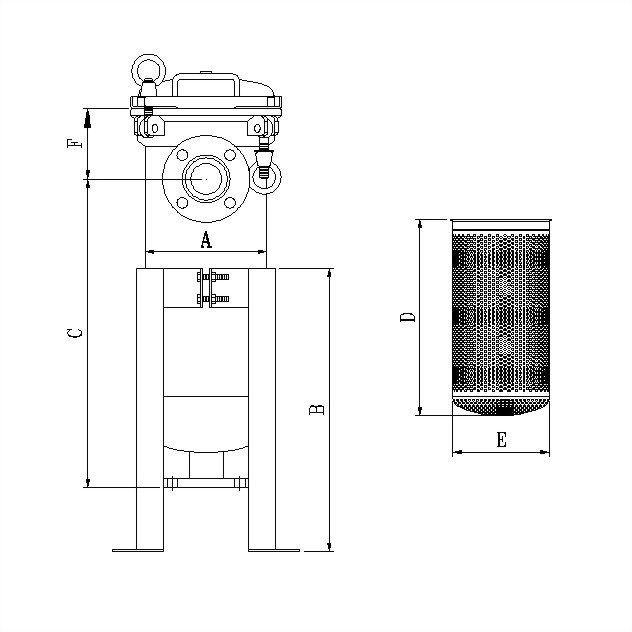

標準尺寸表
|
Model |
A |
B |
C |
D |
E |
F |
|
DH-35 |
216 |
500 |
550 |
350 |
170 |
100 |
|
DH-70 |
216 |
700 |
930 |
730 |
170 |
100 |
|
DH-20 |
140 |
350 |
407 |
200 |
97 |
100 |
|
DH-30 |
140 |
350 |
507 |
290 |
97 |
100 |
※ 尺寸如有更改，恕不另行通知
