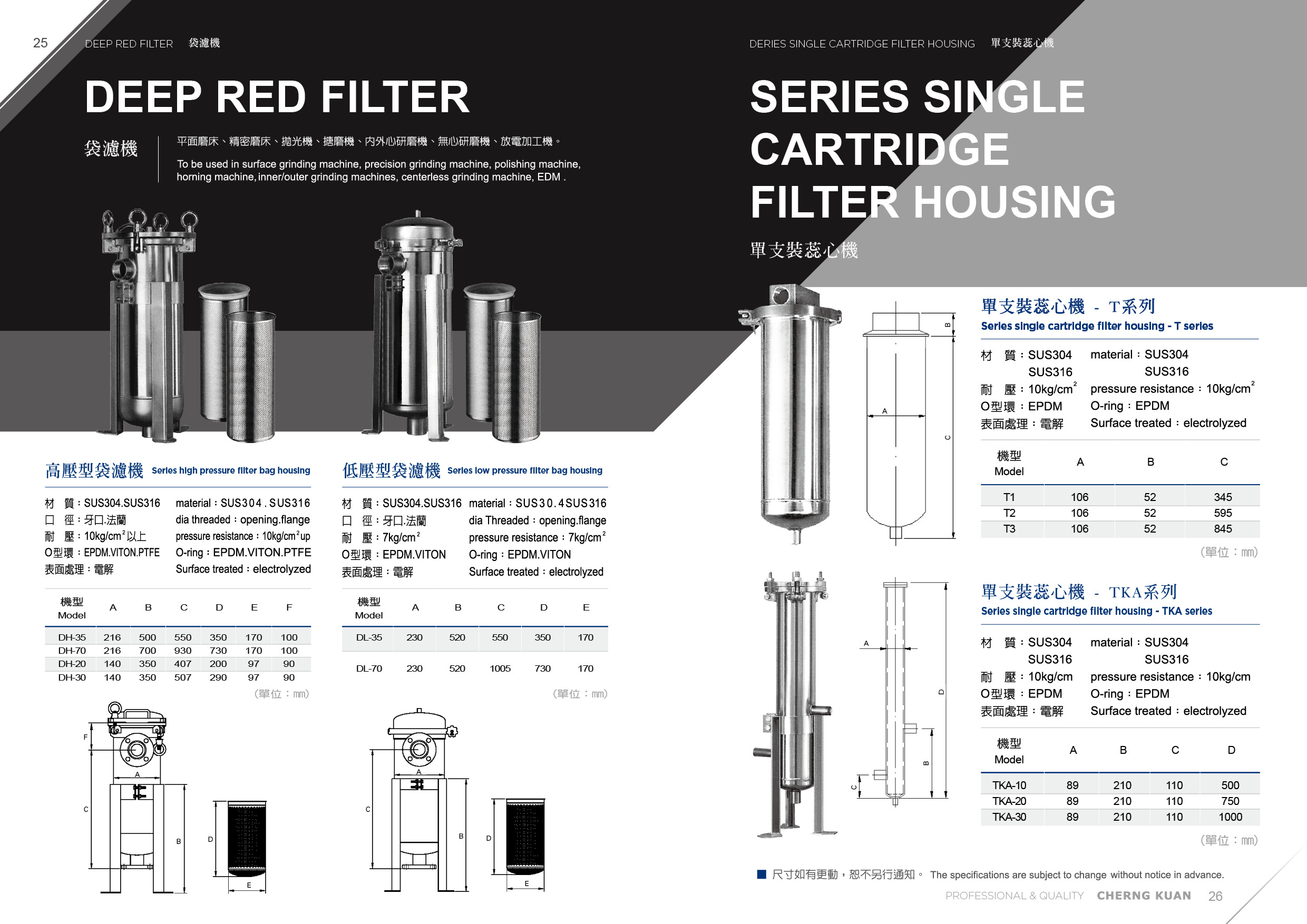

• Series single cartridge filter housing - T series

Series single cartridge filter housing - T series


Application

To be used in the equipment which employs water soluble cutting fluid.


Standard dimension

  • Material: SUS304.SUS316
  • pressure resistance:10kg/cm2
  • O-ring: EPDM
  • Surface treated:electrolyzed

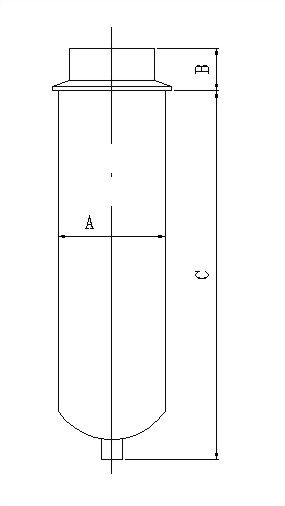

標準尺寸表

Model

A

B

C

T1

106

52

345

T2

106

52

595

T3

106

52

845


※ 尺寸如有更改,恕不另行通知
