Waste oil severance machine
Model :
W3
Attach：
Taiwan patent no.
94200096/94200097
FEATURES
- The stainless steel disc can remove waste oil, such as oil slick, dross, etc…in the water tank.
- New designed scrape board can effectively scrape dirt, and prolong the machine life.
Application
To be used in the equipment which employs water soluble cutting fluid.

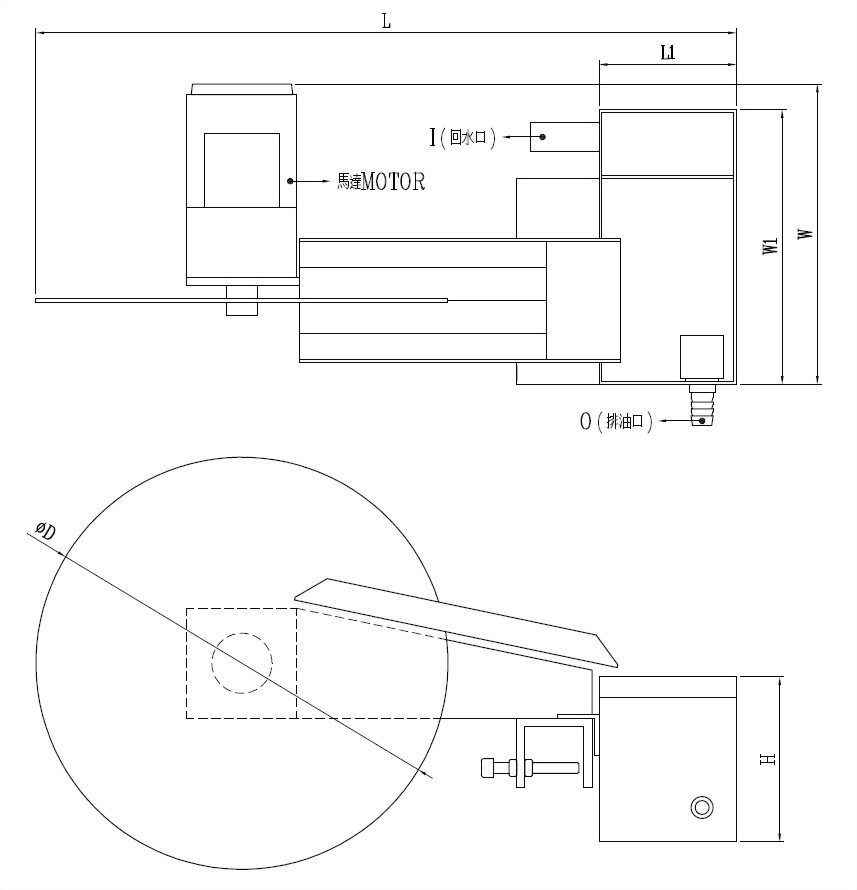

標準尺寸表
| 機型 | 處理量L/Min* | L | L1 | W | W1 | H | ￠D | I | O | 馬達 |
| W2 | 20~30 | 385 | 100 | 260 | 200 | 120 | 200 | 1/2" | 3/4" | 25W |
| W2.5 | 25~35 | 410 | 100 | 260 | 200 | 120 | 250 | 1/2" | 3/4" | 25W |
| W3 | 30~40 | 510 | 100 | 260 | 200 | 120 | 300 | 1/2" | 3/4" | 25W |
| W4 | 40~50 | 560 | 100 | 260 | 200 | 120 | 400 | 1/2" | 3/4" | 25W |
| W5 | 50~60 | 660 | 100 | 260 | 200 | 120 | 500 | 1/2" | 3/4" | 25W |
※The specifications are subject to change without notice in advance.
※Special specifications can be customized.
