Series Low Pressure Filter Bag Housing


Application

To be used in the equipment which employs water soluble cutting fluid.


Standard dimension

  • Material: SUS304.SUS316
  • Dia threaded: opening.flange
  • pressure resistance:7kg/cm2
  • O-ring: EPDM、VITON
  • Surface treated:electrolyzed

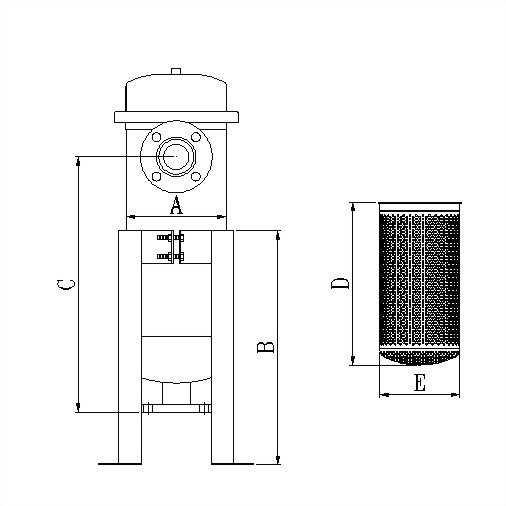

標準尺寸表

Model

A

B

C

D

E

DL-35

230

520

550

350

170

DL-70

230

520

1005

730

170


※ 尺寸如有更改,恕不另行通知
