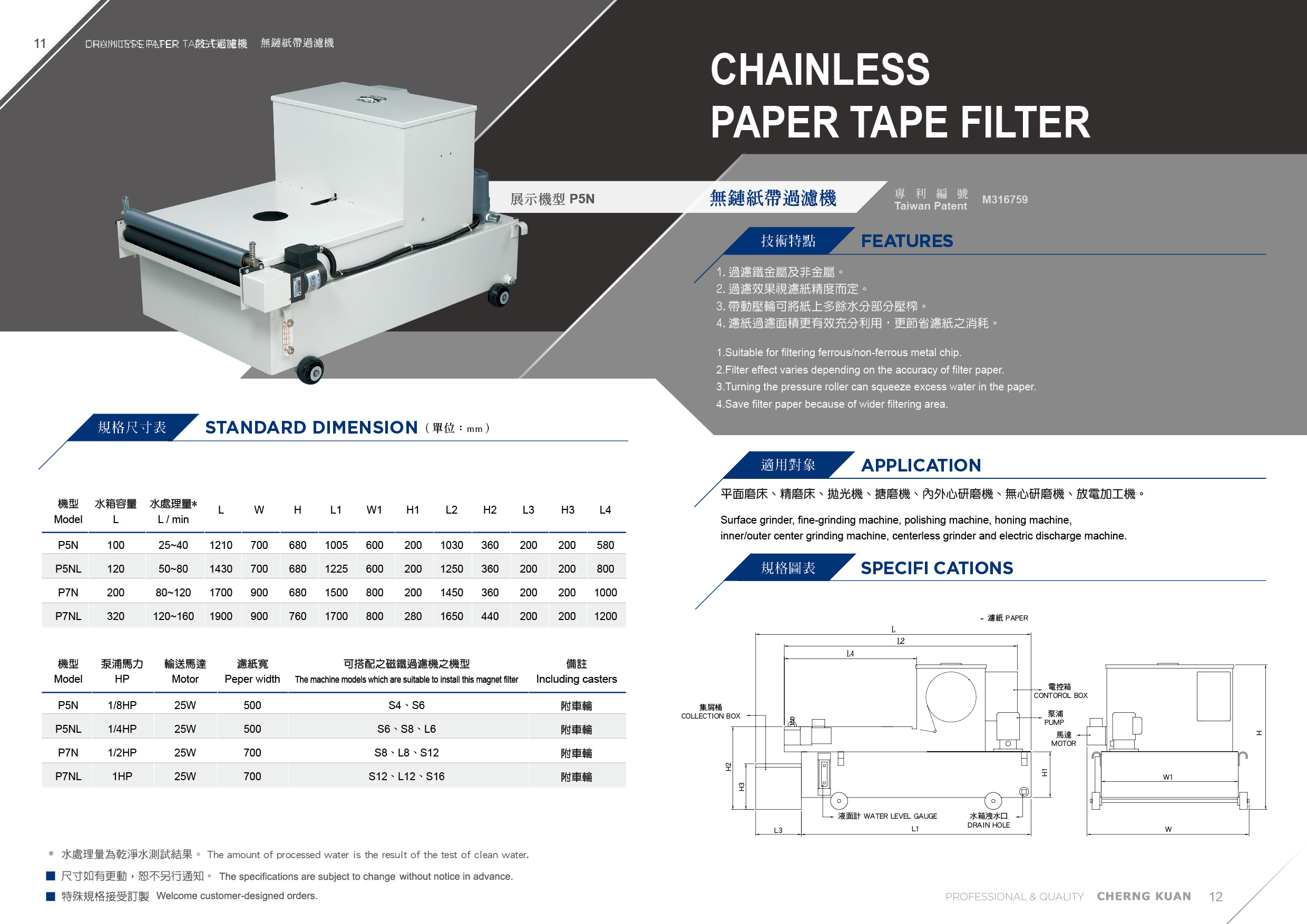

Chainless paper tape filter
Model :
P5N
Attach：
Taiwan patent no.
M316759
FEATURES
- Suitable for filtering ferrous/non-ferrous metal chip.
- Filter effect varies depending on the accuracy of filter paper.
- Turning the pressure roller can squeeze excess water in the paper.
- Save filter paper because of wider filtering area.
APPLICATION
Surface grinder, fine-grinding machine, polishing machine, honing machine, inner/outer center grinding machine, centerless grinder and electric discharge machine.
標準尺寸表

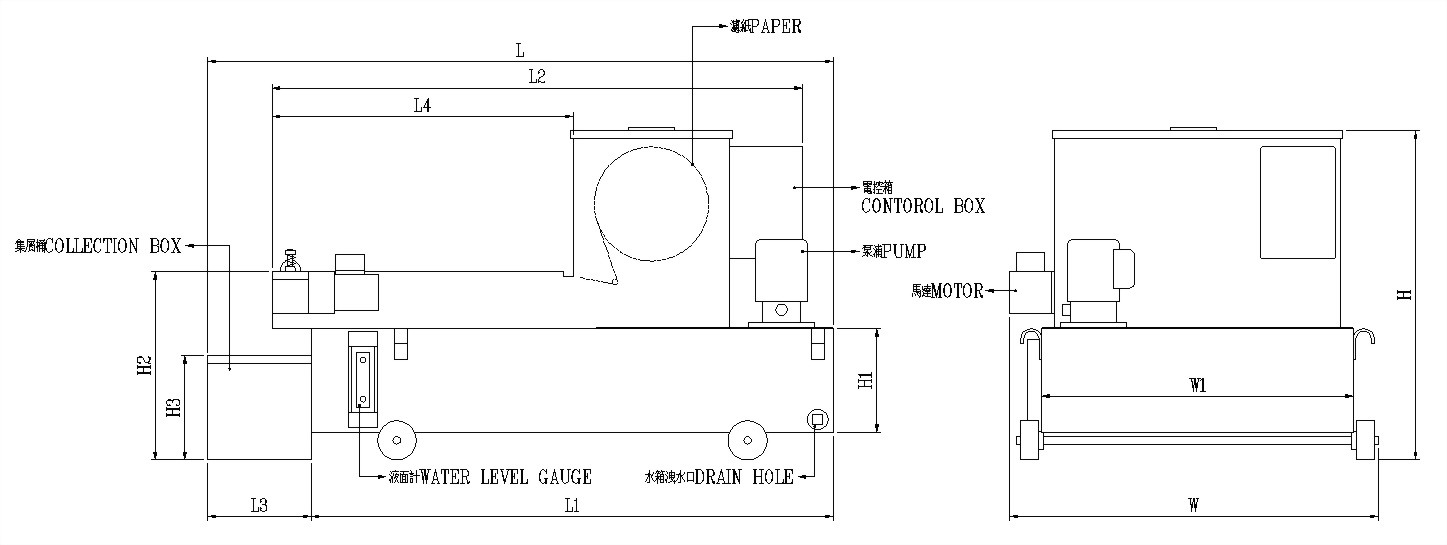

| Model | L | L/Min* | L | W | H | L1 | W1 | H1 | L2 | H2 | L3 | H3 | L4 |
| P5N | 100 | 25~40 | 1210 | 700 | 680 | 1005 | 600 | 200 | 1030 | 360 | 200 | 200 | 580 |
| P5NL | 120 | 50~80 | 1430 | 700 | 680 | 1225 | 600 | 200 | 1250 | 360 | 200 | 200 | 800 |
| P7N | 200 | 80~120 | 1700 | 900 | 680 | 1500 | 800 | 200 | 1450 | 360 | 200 | 200 | 1000 |
| P7NL | 320 | 120~160 | 1900 | 900 | 760 | 1700 | 800 | 280 | 1650 | 440 | 200 | 200 | 1200 |
| Model | HP | Motor | Peper width | The machine models which are suitable to install this magnet filter | Including casters | ||||||||
| P5N | 1/8HP | 25W | 500 | S4；S6 | 附車輪 | ||||||||
| P5NL | 1/4HP | 25W | 500 | S6；S8；L6 | 附車輪 | ||||||||
| P7N | 1/2HP | 25W | 700 | S8；L8；S12 | 附車輪 | ||||||||
| P7NL | 1HP | 25W | 700 | S12；L12；S16 | 附車輪 | ||||||||
*The amount of processed water is the result of the test of clean water.
※The specifications are subject to change without notice in advance.
※Special specifications can be customized.
